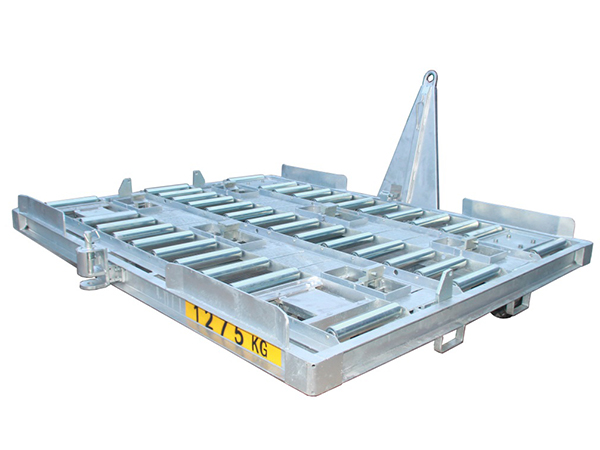

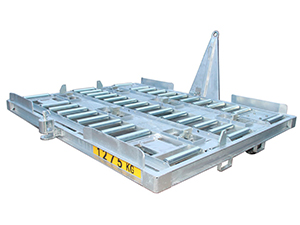

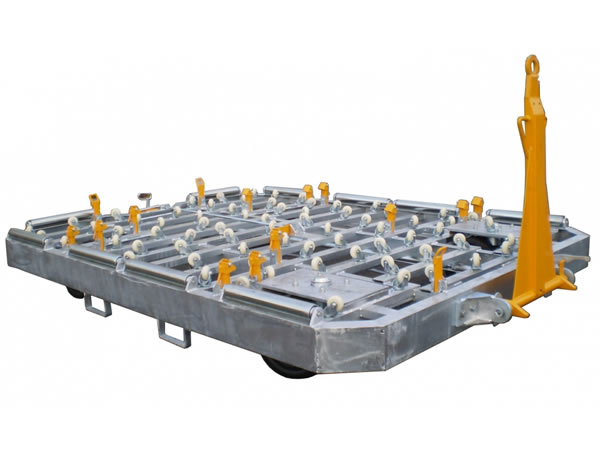

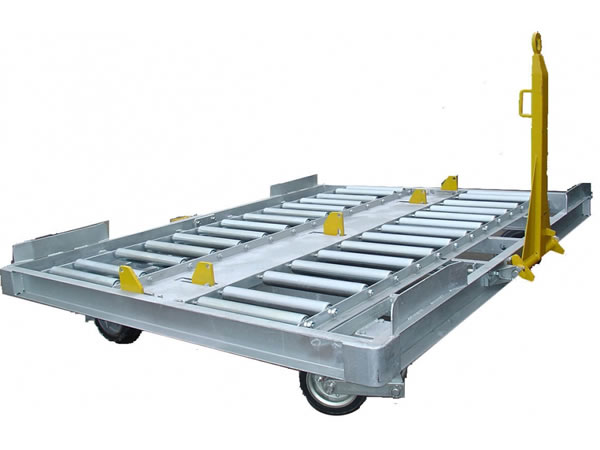

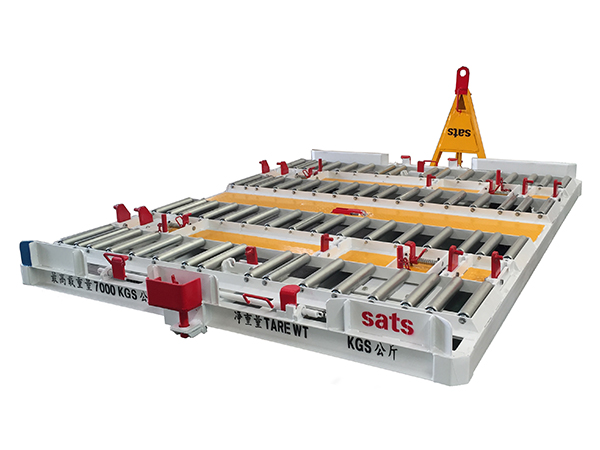

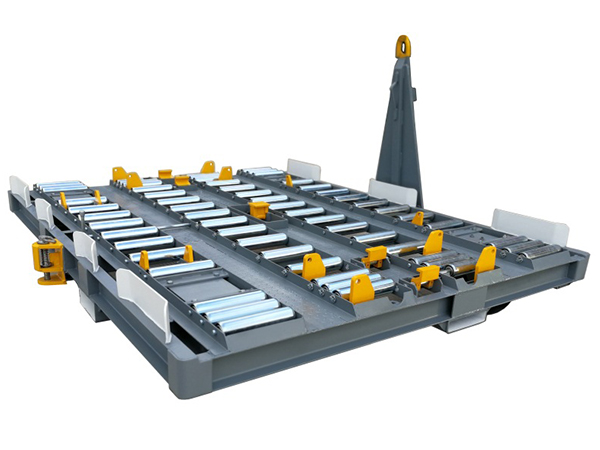

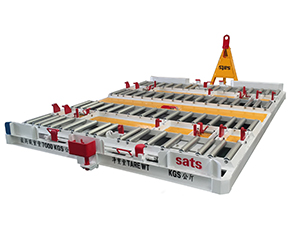

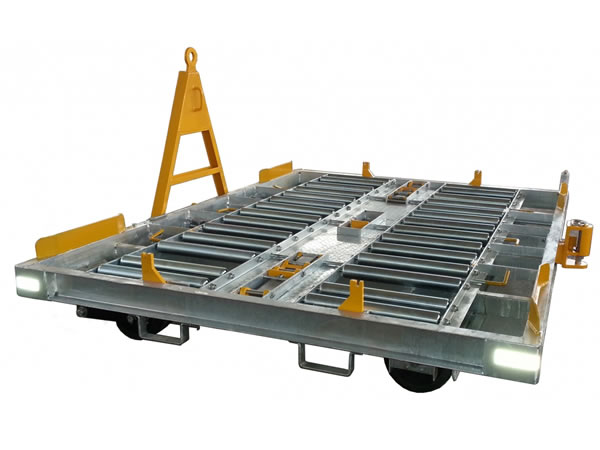

10FT Pallet Dolly for Airport Cargo

Cargo Dollies/ Cargo Trailers

The 10FT pallet dolly for airport cargo is designed especially for airport container or pallet loading, unloading and transporting. The dolly is labor saving, safe and quick for cargo transporting. It also offers strong loading capacity and flexible rotation. It is suitable for airports, railway stations and other places for transporting cargo pallets, large cargo containers, and cabinets, etc.

This pallet dolly can handle 125’’X 96’’, 125’’x88’’ and 108’’x88’’ cargo pallet, plus P1P, P6P , LD1, LD3 and LD8 cargo container.

Features
1) With swivel casters, this pallet dolly is adjustable in multiple directions, making the operation more flexible.
2) The whole dolly is made of high quality steel to be sturdy and durable. It also has large loading capacity of as much as 7000kgs.
3) When the tow-bar is upright or released, the braking is automatically applied to keep safety.
4) The roller helps to put the heavy cargo on the pallet dolly. It also has a strong bearing capacity and the whole roller bed can load at least 7000kgs.
5) This dolly is convenient to maintain.
6) The walkway adopts a anti-slipping steel plate. The main moving parts use anti-wear alloy bushings with galvanized surface to be rust-proof.

Custom service
1) Logo can be printed base on clients’ requirements.
2) The surface can be painted or galvanized.

Model	HD-P011703
Overall dimension	3660 x 3460 x570 mm
Working platform size	3460x 2660 x 510 mm
Roller bed height	508– 515 mm
Payload	7000 kgs
Own weight	1150 kgs
Max. Towing speed	25 km/h
Roller row number	2 rows
Steering	Swivel castors steering
Loading	96" sides loading

Model	HD-P011704
Overall dimension	5023x2600x571 mm
Working platform size	3300x2600x510 mm
Roller bed height	508– 515 mm
Payload	7000 kgs
Own weight	1350 kgs
Max. Towing speed	25 km/h
Roller row number	4 rows
Steering	Bearing turntable steering
Loading	125" sides loading

Model	HD-P011707
Overall dimension	4137x3460x560mm
Working platform size	3460x2610mm
Roller bed height	508–518mm
Payload	7000kgs
Own weight	1150kgs
Max. Towing speed	30 km/h
Roller row number	2 rows
Steering	Swivel castors steering
Loading	96" sides loading

Model	HD-P011708
Overall dimension	4740x2675x560mm
Working platform size	3505x2675mm
Roller bed height	508–518mm
Payload	7000kgs
Own weight	1150kgs
Max. Towing speed	25 km/h
Roller	Heavy duty universal guiding wheel and roller
Steering	Swivel castors steering
Loading	125" sides and end loading

Model	HD-P011709
Overall dimension	4084mmx3356mmx560mm
Working platform size	3356mmx2620mm
Roller bed height	508mm-518mm
Payload	7000 kgs
Own weight	1275 kgs
Max. Towing speed	25 km/h
Roller row number	3 rows
Steering	Swivel castors steering
Loading	96" sides loading

Model	HD-P011710
Overall dimension	4170mmx3390mmx598mm
Working platform size	3390mmx2640mm
Roller bed height	508mm-518mm
Payload	7000kgs
Own weight	1460kgs
Max. Towing speed	25 km/h
Roller row number	4 rows
Steering	Swivel castors steering
Loading	96" sides loading
