العربيةAircraft Towing Tractor

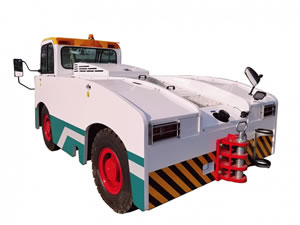

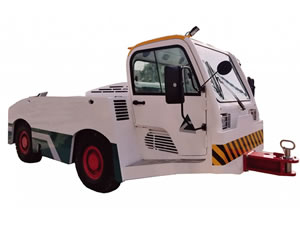

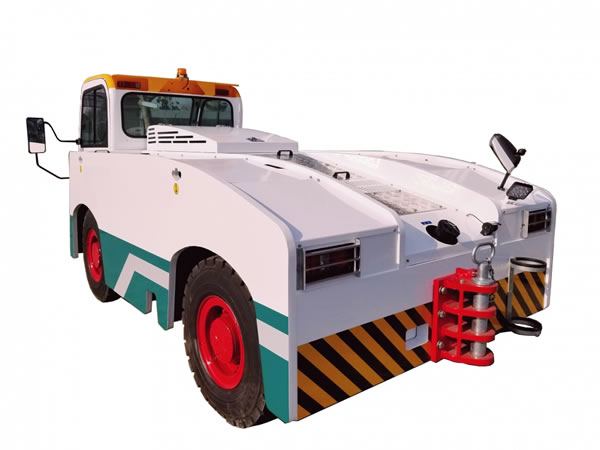

The HD-ATT60 aircraft towing tractor is capable of trundling or dragging a variety of CRJ aircraft, including Boeing B727, B737, B757, Airbus A300, A310, A319, A320, McDonnell MD-82, MD-90 and other aircraft weighing less than 150 tons.
The aircraft towing tractor consists of the frame, drive system, engine system, air conditioning system, dual oil system, hydraulic system, cab, electrical system and flat system.
Technical Specifications of Aircraft Towing Tractor| Product Model | ATT60 A | ATT60 B |
| Traction Power | 120KN | 125KN |
| Maximum Tractive Tonnage | 15T | 20T |
| Steering Modes | Four-Wheel Steering | Four-Wheel Steering |
| Vehicle Length | 5430mm | 5430mm |
| Vehicle Width | 2080mm | 2080mm |
| Vehicle Height(Cab) | 1990mm | 1990mm |
| Ground Clearance | 210mm | 210mm |
| Minimum Turning Radius(Inside) | 3300mm | 3600mm |
| Minimum Turning Radius (Outside) | 8800mm | 8800mm |
| Wheel Base | 2200mm | 2200mm |
| Track (Front/Rear) | 1790mm | 1790mm |
| Approach Angle | 15° | 15° |
| Departure Angle | 15° | 5° |
| Maximum Forward Speed | 25km/h | 25km/h |
| Maximum Back Speed | 20km/h | 20km/h |
| Curb Weight | 15960kg | 15200kg |
| Maximum Gradability | 25° | 25° |
| Maximum Braking Length | 3.4M | 3.4M |
| Engine Model/ Brand | Perkins:1044TA/ Perkins | TD3.6L4/DEUTZ |
| Power | 74.5KW/2400 | 74.9KW/2500 |
| Torque | 230 Nm | 186 Nm |
| Diesel Consumption | 215 g/Kw.h | 220 g/Kw.h |
| Gearbox Model/ Brand | DANA T12465 (4 Forward Gear 3Reverse Gear ) | DANA T12465 ( 4 Forward Gear 3Reverse Gear |
| Front axle Model/Brand | DANA212 Steer /Drive Axle(Leaf Spring Damping) | DANA212 Steer /Drive Axle(Leaf Spring Damping) |
| Rear Axle Model/ Brand | DANA212 Steer /Drive Axle | DANA212 Steer /Drive Axle |
| Hydraulic Oil Tank | 80 L | 80 L |
| Diesel Tank | 90 L | 90 L |
| Electrical System | 24VDC | 24VDC |
- Cab

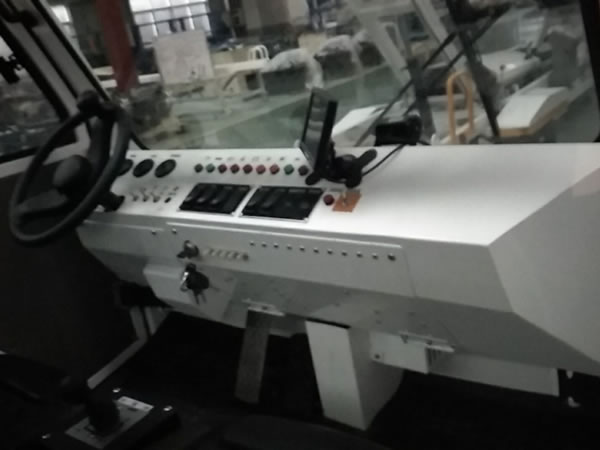

1) The cab is fully enclosed, and uses an easy to operate power hydraulic system.
2) The cab includes a variety of instruments, gauges, indicator lights and other clear digital displays.
3) The cab is equipped with an air conditioner, backwards movement image system, radar and other features. -
- The tractor body is built using a high strength, thickened steel plate and a counterweight steel plate, thus ensuring tractor stability and safety.
- The aircraft towing tractor uses DEUTZ engines or Perkins engines, both of which feature a high power with low emission levels. These tractors easily provide trundle or drag operations for narrow body and medium sized aircraft.
- The tow tractor uses DANA T12465 gearbox, which is a power shift gearbox with a torque converter: 4 gears forward and 3 reverse.

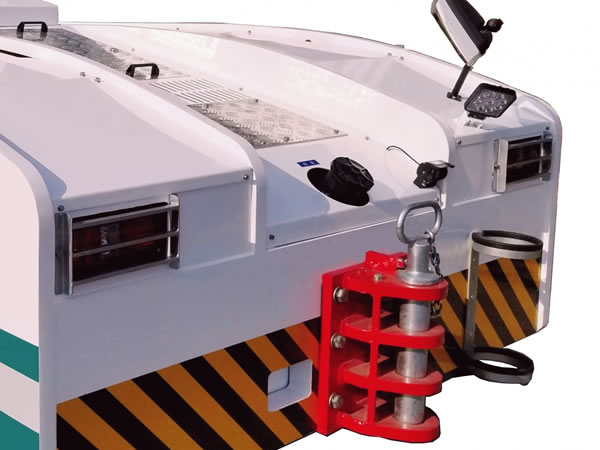

- The two ends of the tractor body are equipped with a 70mm diameter traction pin so that the user can manually control the hook device.
-
- Brake characteristics: double circuit /quattro hydraulic drive / disc brakes in the oil
- Parking brake characteristics: rear wheel hydraulic brake /disc brakes in the oil
- Steering mode: quattro hydraulic control steering
