Disabled Passenger Lift Truck

  • Disabled Passenger Lift Truck
  • Disabled Passenger Lift Truck
  • Disabled Passenger Lift Truck

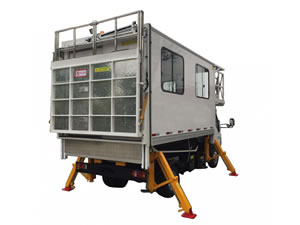

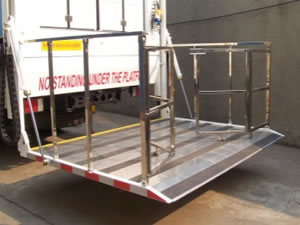

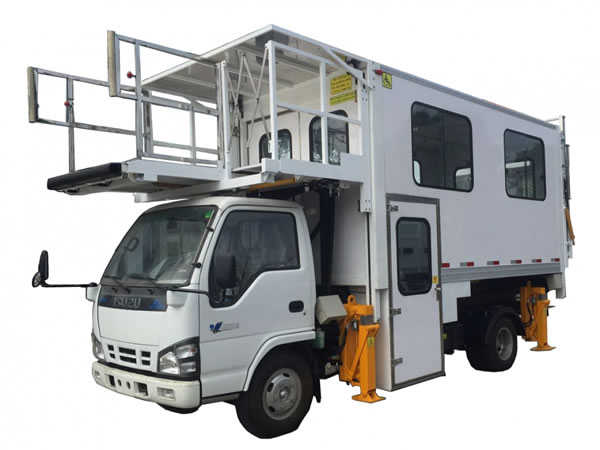

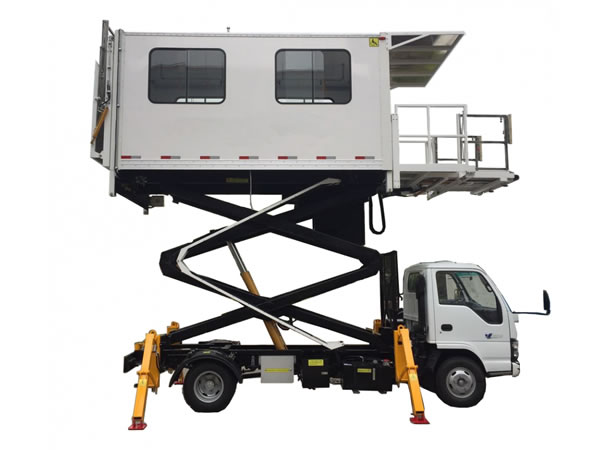

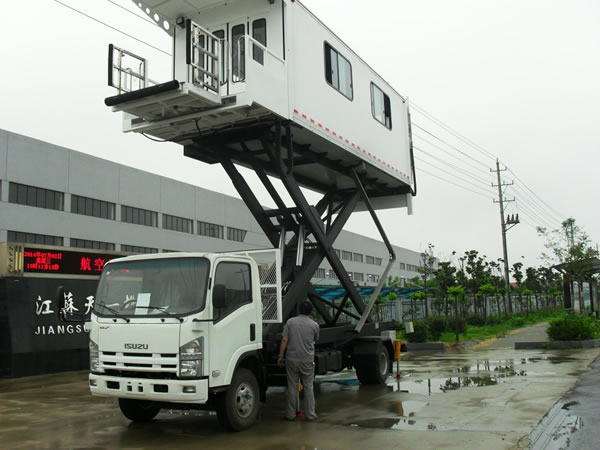

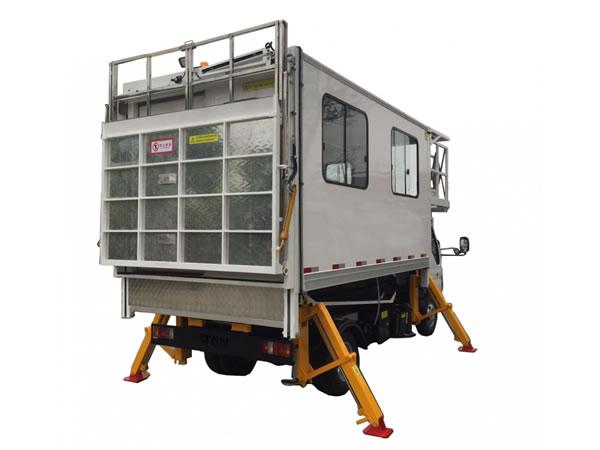

The HD-AT60 disabled passenger lift truck is special airport equipment to assist disabled passengers on and off the planes. It is often used with Boeing B737, B747, B757, B767, B777, Airbus A320, A300, A330, A340 and other aircrafts.

The truck is comprised of a second class chassis, chassis assembly, lifting fork assembly, carriage assembly, front and behind working platform assembly, air conditioning system, hydraulic system, and electrical system.

Feature
High Strength Material & High Resilience.
The lifting fork is available in two types: double scissor fork and single scissor fork. The 600P chassis truck traditionally uses a double scissor fork, while the 700P uses a single scissor fork. The longitudinal fork beam is made using a high strength, corrosion resistant seamless square tube. Movement of the double hydraulic cylinder drives the carriage lifting performance.
  • Emergency measures for mechanical devices, electrical installations and hydraulic devices are all complete. Emergency system ensures the safety of aircraft passenger lift truck. Users can choose between an electric emergency system or a manual emergency system.

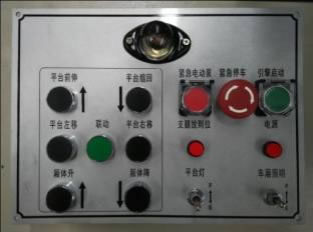

  • The disabled passenger lift truck uses an advanced and reliable integrated circuit board and relay combination control.
Long Operating Life
  • The hydraulic parts and electrical parts are all imported from Western brands, ensuring the stable performance and long service life.
  • All operating switches, plugs, and circuit boards have a long service life, because they are all water resistant.
Complete Carriage Functions
  • The inner and outer surfaces of the carriage are made of a white fiberglass clad plate, which features an outstanding sound absorption, thermal, acoustic, environmentally friendly and flame retardant performance.

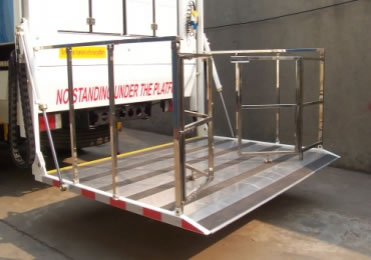

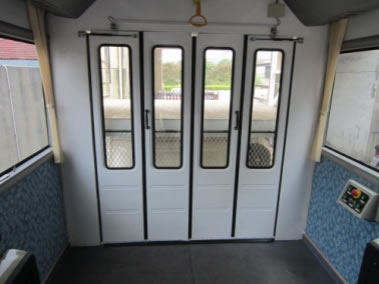

  • The front and rear doors of the carriage are flexible and light folded doors.
  • Both sides in the carriage are equipped with LED lights for carriage illumination.
  • The external upper edges of the carriage’s front and back doors are equipped with working lights for working at night.

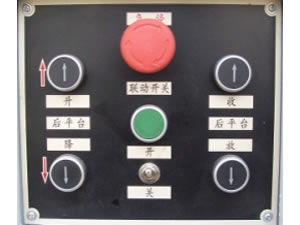

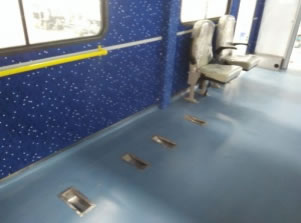

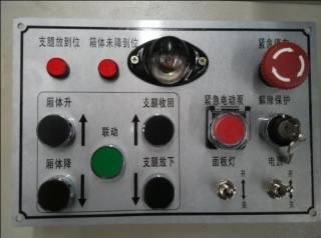

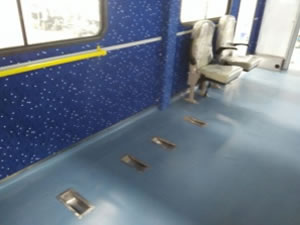

  • The carriage floor is easy to clean, thanks to the use of a skid resistant floorboard adhesive.

Technical Specifications
Carriage Rated Load: 1500kg
Rear Lift Platform Rated Load : 400kg
Platform Left-to-Right Adjustment Range: 0～600mm
Platform Scale Adjustment Range : 0～500mm
Fixed Platform Dimension (Length * Width): 1200*2280mm
Mobile Platform Dimension(Length* Width): 900*1300mm
Rear Lift Platform Dimension(Length *Width): 1480*2190mm

Project AT6A Configuration 1 (600P/ MT/EURO 4) AT6B Configuration 2 (700P/ MT/EURO 4) AT6C Configuration 3 (700P/ MT/EURO 5) AT6D Configuration 4 (700P /AT/EURO 5)
Engine Manufacturer/Model ISUZU(ChongQing) Engine Co., LTD /4HK1-TCG40 ISUZU(ChongQing) Engine Co., LTD/4HK1-TCG40 ISUZU(ChongQing) Engine Co., LTD/4HK1-TC51 ISUZU(ChongQing) Engine Co., LTD/4HK1-TC51
Engine Power 88KW 139KW 141KW 141KW
Under-pan Wheel Base 3815mm 5200mm 5200mm 5200mm
Platform Working Height 2400～5845mm 2600～5700mm 2500～5800mm 2500～5800mm
Front Platform Rated Load 1000kg 1000kg 1200kg 1200kg
Rear Lifting Platform Range 0-1400mm 0-1500mm 0-1500mm 0-1500mm
Curb Weight 7200kg 11500kg 11300kg 11300kg
Boundary Dimension (Length *Width * Height) 6900×2400×3800mm 8990×2450×3880mm 8990×2450×3880mm 8990×2450×3880mm
Under-pan(Manufacturer /Model) ISUZU Motor Co., LTD/QL1070A1ARY ISUZU Motor Co., LTD/QL11009PARY ISUZU Motor Co., LTD /QL1100A8PAY ISUZU Motor Co., LTD/QL1100A8PAY
Engine Emission GB 4 GB 4 GB 5 GB 5
Carriage Dimensions (Length * Width* Height) 4600*2300*2150mm 6350×2200×2150mm 6350×2200×2100mm 6350×2200×2100mm
Gearbox (Manufacturer /Model) ISUZU Motor Co., LTD/MSB(Five-Speed) ISUZU Motor Co., LTD /MLD-6Q(Five-Speed) ISUZU Motor Co., LTD /MLD-6Q(Five-Speed) ISUZU Transmission Co., LTD /ALLISON2500
