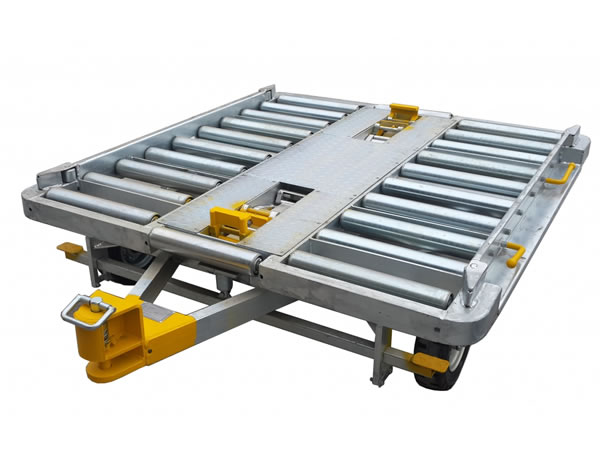

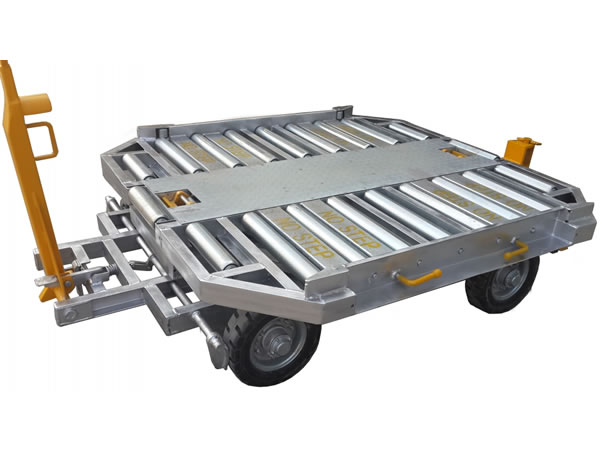

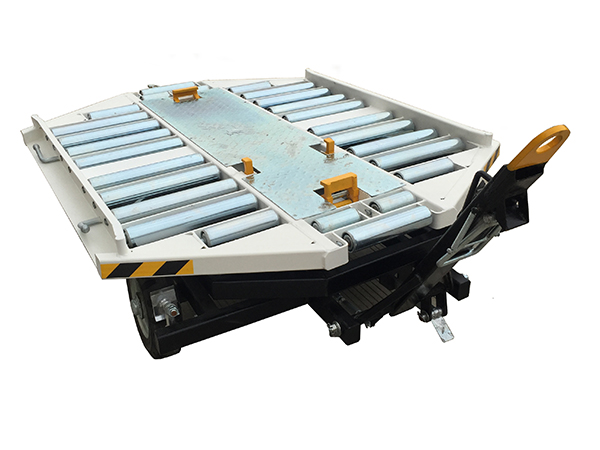

Orientitan produced the LD3 container dolly especially for handling LD1, LD2 and LD3 containers. The whole dolly is manufactured with high-quality steel to be firm and durable, as well as provide large loading capacity of 1600kgs.

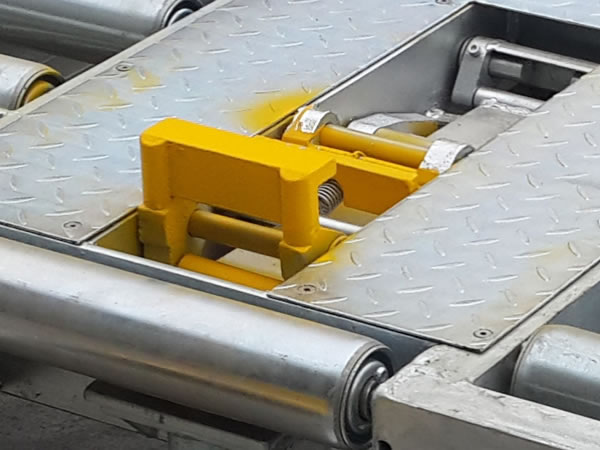

1) The walkway is covered with anti-slipping steel plate and the main moving parts are heavy-duty galvanized rollers with the features of large loading capacity and rust protection. The whole dolly is treated with hot-dip galvanization to make it beautiful, durable and uneasy to rust.
2) The braking way is diverse, which is applied when the tow-bar is upright or released.
3) This dolly steers via a turntable.
4) With a 360° rotary turntable, it can be rotated to any position. The operation is flexible and convenient.

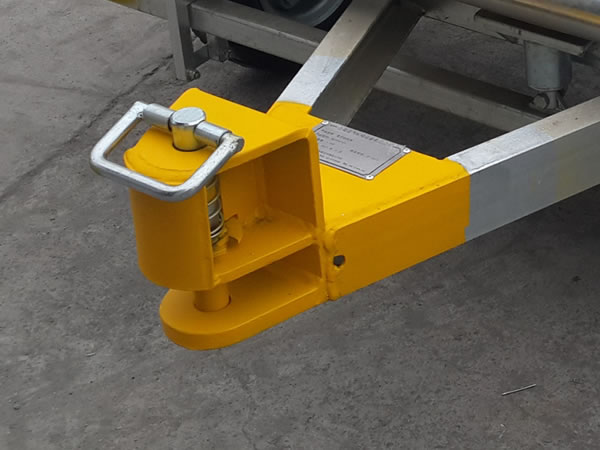

5) Spring is equipped with built-in E type rear hitch, of high safety.
6) The maintenance is simple and easy to do.
7) The surface treatment is hot-dip galvanization, making it beautiful, durable and uneasy to rust.
1) Logo can be printed according to clients’ requests.
2) The surface can be painted or galvanized.
|Overall dimension||3500mm x 1770mm x 560mm|
|Working platform size||1915mm x 1554mm|
|Overall dimension||3666mm x 1860mm x 568mm|
|Working platform size||1910mm x 1860mm|
|Roller bed height||508mm-515mm|
|Overall dimension||3520mm x1770mm x562mm|
|Working platform size||2216mm x 1770mm|
|Roller bed height||508mm-518mm|
